| Brand Name: | BEDE |
| Model Number: | GX-16-SF-2~10 |
| MOQ: | 200 sets |
| Price: | negotiation |
| Packaging Details: | packing in PE bag with mounting screws and nuts,100sets per carton |
| Payment Terms: | T/T, Western Union, MoneyGram |

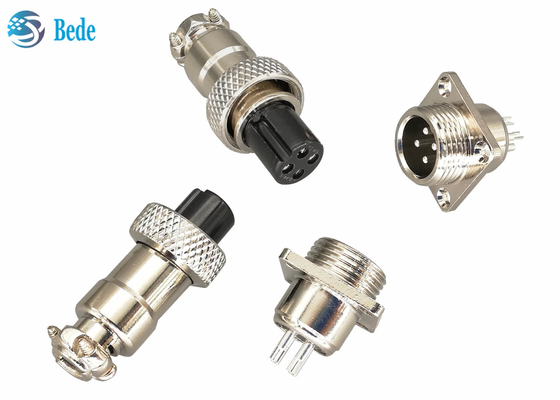

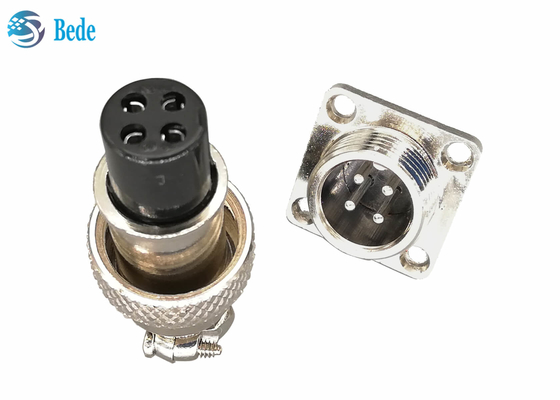

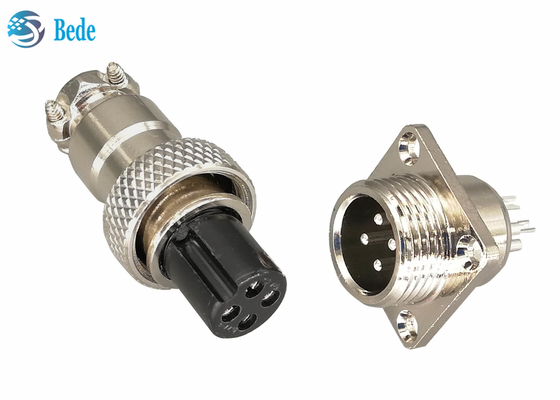

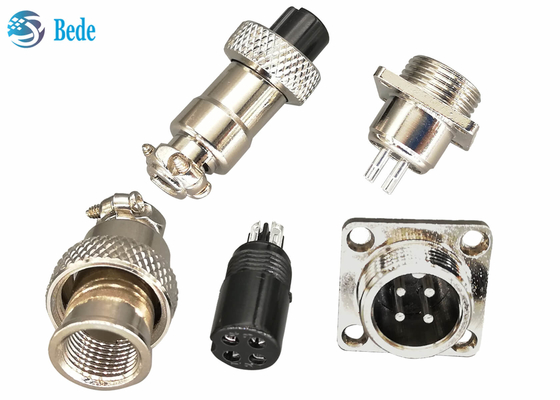

GX16 Aviation Connector With Square Flange Cable To Panel Style 2~10 Pin
Structure
1.Housing of female connector,zinc alloy with nickel plated
2.Nut for fixing female and male after connection,zinc alloy and rubber materials
3.Female connector, black bakelite material,
4.Male connector, shell material is zinc alloy with nickel plated,
5.Contact pins, material is brass with silver plated
Notice: coming with the screws, washers, nuts for flange mounting, panel cutout refer the following pictrue
Electrical data
| pins | 2 pin 3pin | 4pin | 5pin | 6 7 8 9 10 pin |
| rated current | 7A | 5A | 5A | 4A |
| working voltage | 200V | |||
| Contact resistance | 3mΩ max | |||
| Insulation resistance | 1500MΩ | |||
| Withstand voltage | 1500V | |||
| Contact hole size Φmm | 2.45 | 2.45 | 2.00 | 1.15 |
All familier
About GX16 aviation connector, M16 circular connectors, all models as following, please feel free to contact us, or return to the product catalog to know more if you are interested.
1.Panel mounting model-- front mounting
2.Cable docking model
3.Panel mounting model--Rear mounting
4.Panel mounting model with round flange
5.Panel mounting model with square flange
6.Panel mounting model with rhombus flange
7.PCB welding model with elbow pins
8.PCB welding model with straight pins
9.Panel mounting model with right angle--front mounting
10.Waterproof cable docking model
11.Waterproof panel mount model
12.Panel mounting model with right angle--rear mounting
|
|
