16 Millimeter M16 Circular Connectors With Square Flange 2~10 Pin 200V
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE RoHS |
| Model Number | GX-16-SF-2~10 |
| Minimum Order Quantity | 200 sets |
| Price | negotiation |
| Packaging Details | packing in PE bag with mounting screws and nuts,100sets per carton |
| Delivery Time | according the quantity |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 8000 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Current | 4~7A | Working Voltage | 200V |
|---|---|---|---|
| Withstand Voltage | 1500V | Mounting Hole | 16 Millimeter |
| Applicable Temperature | -50℃~+70℃ | Applicable Cable | Φ7.5mm |
| Wiring Method | Welding | Connect Style | Male To Female |
| High Light | m16 circular connectors 10Pin,m16 circular connectors 200V,M16 10 pin circular connector |
||
Product Description

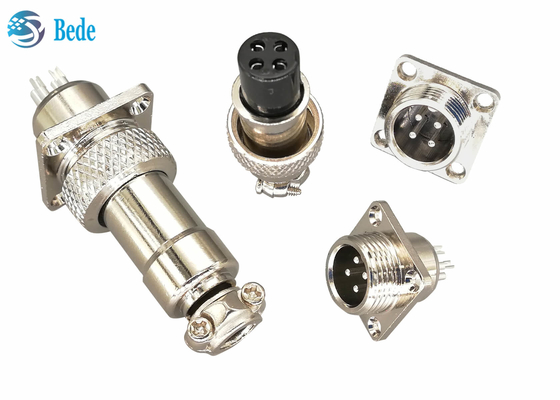

M16 Circular Connector With Square Flange Panel Mounting Connector 2~10 Pin 200V
Description

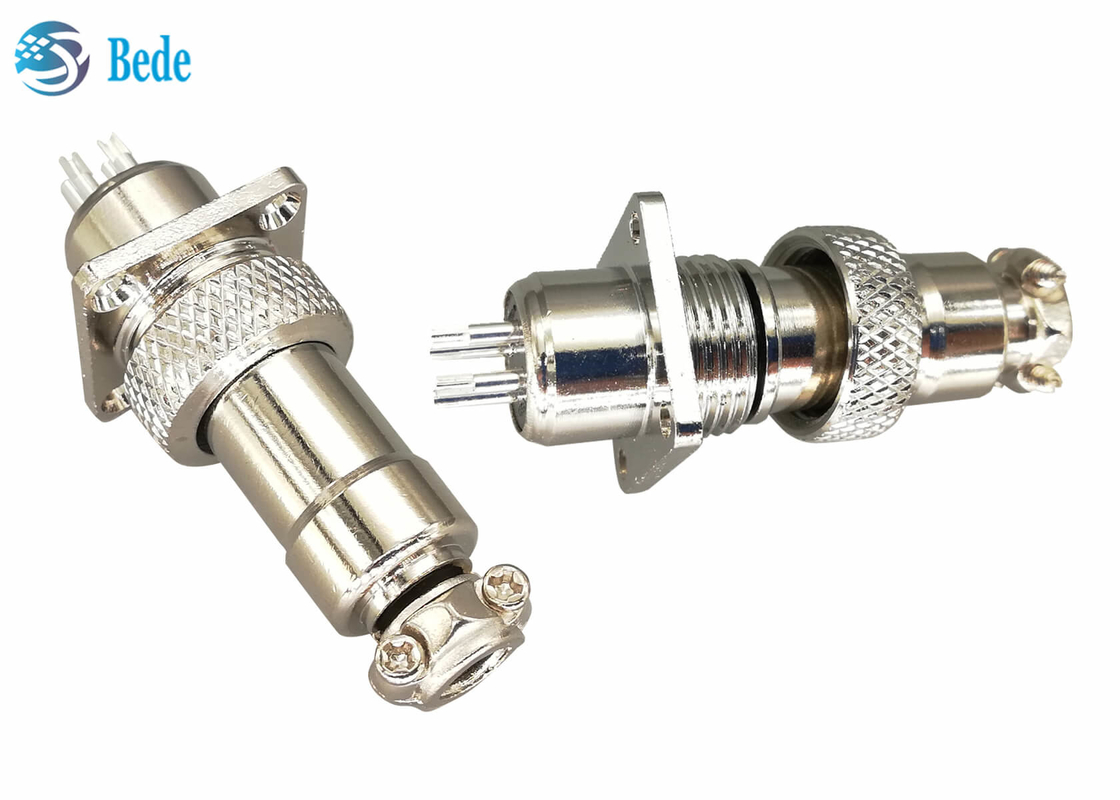

1. Cable-to-panel connector with square flange on panel mount end,
2. Military-grade quality, withstand voltage 1500V, working voltage 200V,
3. Contact pins are made of silver-plated copper for high conductivity and low contact resistance
4. The wiring method is welding, suitable for cables with an outer diameter of 7.5mm and below
5. shell material is zinc alloy with nickel plated, silver color, balck color is available if you like
Notice: coming with the screws, washers, nuts for flange mounting, panel cutout refer the following pictrue
Electrical data
| pins | 2 pin 3pin | 4pin | 5pin | 6 7 8 9 10 pin |
| rated current | 7A | 5A | 5A | 4A |
| working voltage | 200V | |||
| Contact resistance | 3mΩ max | |||
| Insulation resistance | 1500MΩ | |||
| Withstand voltage | 1500V | |||
| Contact hole size Φmm | 2.45 | 2.45 | 2.00 | 1.15 |
All familier

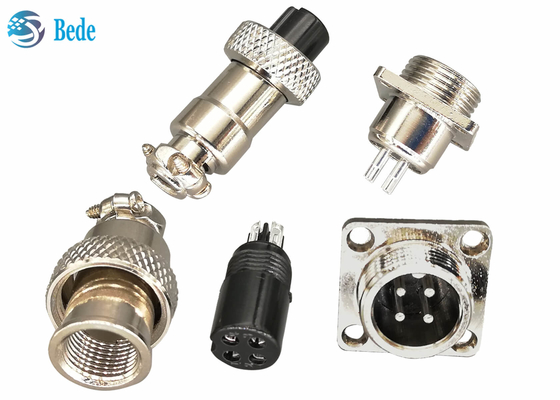

About GX16 aviation connector, M16 circular connectors, all models as following, please feel free to contact us, or return to the product catalog to know more if you are interested.
1. Panel mounting model-- front mounting
2. Cable docking model
3. Panel mounting model--Rear mounting
4. Panel mounting model with round flange
5. Panel mounting model with square flange
6. Panel mounting model with rhombus flange
7. PCB welding model with elbow pins
8. PCB welding model with straight pins
9. Panel mounting model with right angle--front mounting
10. Waterproof cable docking model
11. Waterproof panel mount model
12. Panel mounting model with right angle--rear mounting
Recommended Products
