Gx16 Aviation Connector
>

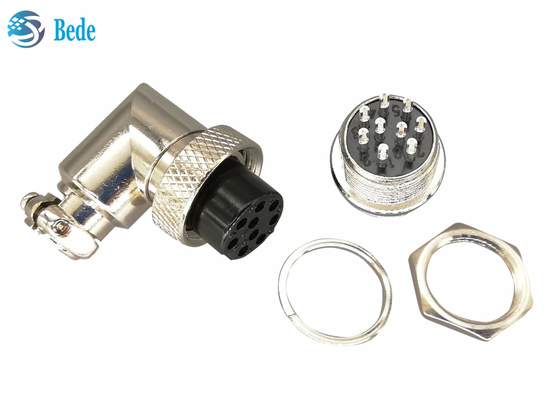

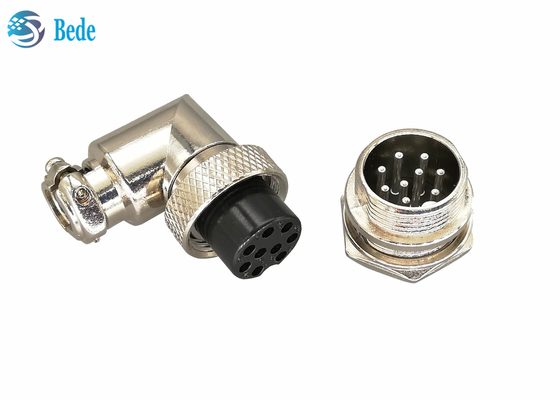

Aviation 200V 4A M16 Cable Connector Right Angle Female And Panle Mounting Male 6~10 Pins

Aviation 200V 4A M16 Cable Connector Right Angle Female And Panle Mounting Male 6~10 Pins

Brand Name: BEDE
Model Number: GX16-L-6 7 8 9 10
MOQ: 150 sets
Price: negotiation
Packaging Details: packing with PE bags, 150 sets per carton
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Color:
Silver
Shell Material:
Zinc Alloy With Plated
Insulator Materials:
Bakelite Plastic
Contact Pins:
Brass With Silver Plated
Application Temperature:
-50 ~ +70℃
Pins:
6 7 8 9 10
Rated Current:
4A
Working Voltage:
200V
Supply Ability:
5500 sets per day
Highlight:

Aviation m16 cable connector

,

200V 4A m16 cable connector

,

200V m16 female connector

Product Description

M16 Aviation Connector Right Angle Female And Panle Mounting Male 6~10 Pins 200V 4A



Product Description

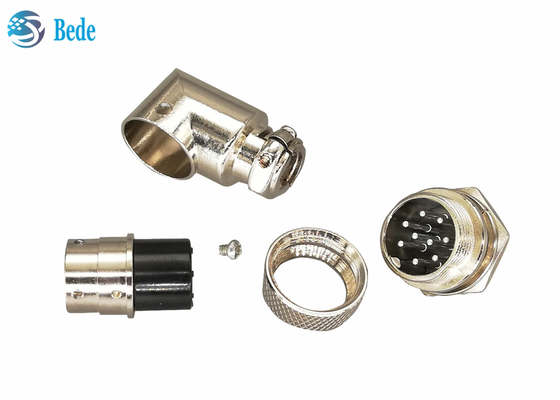

1. a panel to wire connetor kits, male connetor for pannel mounting and right angel female connetor for wire welding

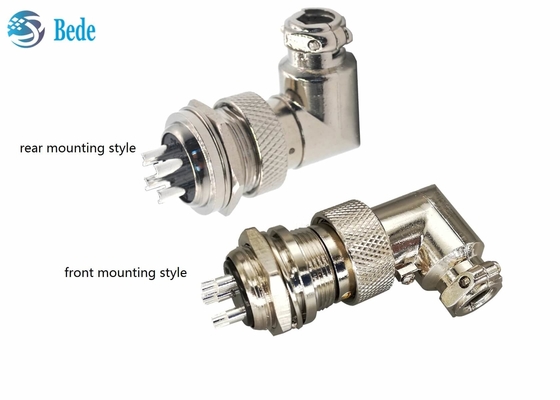

2. Male connectors are available in both front mounting style and rear mounting style

3. Military quality, main body material is nickel plated zinc alloy,lightweight and sturdy.

4.Suitable for -50 ~ +70℃ temperetrue

5.suitale cable diameter Φ7.5mm

6.contact pins material is brass with silver plated,high conductivity and low contact resistance

7.The connector color is usually silver, which is the color of the nickel plating, if black is required, we can oxidize it to have the same anti-rust effect

Aviation 200V 4A M16 Cable Connector Right Angle Female And Panle Mounting Male  6~10 Pins 0



Electrical data

pins 6 7 8 9 10
Rated current 4A 4A 4A 4A 4A
working voltage 200V 200V 200V 200V 200V
Insulation resistance 1500V 1500V 1500V 1500V 1500V
Contact resistance ≤3mΩ ≤5
Contact hole size 1.15mm 1.15mm 1.15mm 1.15mm 1.15mm



Size and pins location

 Product size and pins location as following picture, customization is welcome, please feel free to contact us.

Aviation 200V 4A M16 Cable Connector Right Angle Female And Panle Mounting Male  6~10 Pins 1

All familier

    About GX16 aviation connector, M16 circular connectors, all following styles in stock, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Panel mounting model-- Rear mounting

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting



Aviation 200V 4A M16 Cable Connector Right Angle Female And Panle Mounting Male  6~10 Pins 2
