Copper Shell M12 Aviation Connector IP68 Cable To Cable Docking Style 2~7 Pin
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE RoHS |
| Model Number | GX-12-WP-2~7-B |
| Minimum Order Quantity | 150 sets |
| Price | negotiation |
| Packaging Details | packing in PE bag each and 150sets per carton |
| Delivery Time | within 5 days after payment |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 7800 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Current | 8A | Working Voltage | 500V |
|---|---|---|---|
| Mounting Hole | 13mm | Applicable Temperature | -40~+85℃ |
| Applicable Cable | Φ6.0mm | Waterproof | IP68 |
| High Light | m12 aviation connector 2Pin,m12 aviation connector IP68,m12 waterproof connector 7 Pin |
||
Product Description
Copper Shell M16 Aviation Connector IP68 Cable To Cable Docking Style 2~7 Pin
Structure

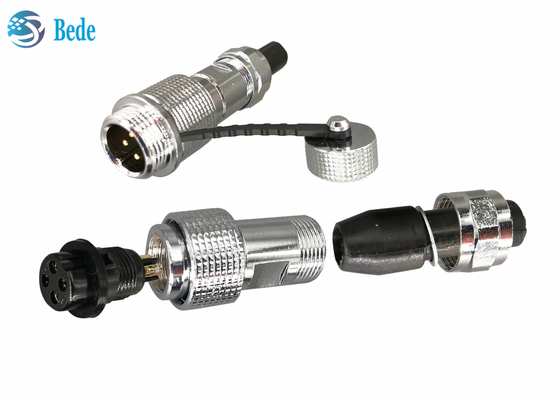

1. Male connector, shell material is copper with chrome plated, contact pins material is brass with gold plated
2. Optional accessories, protective cover, chrome plated copper and rubber
3. O-rings for waterproofing
4. Female connector, black bakelite material, contact pins material is brass with gold plated
5, Housing of female connector, copper with chrome plated
6. cable sleeve
7. washer
8, Nut, copper with chrome plated, gripping the cable with 6&7 together for waterproofing,
Notice: It is critical that all nuts are tightened after connection, otherwise the waterproofing effect may be adversely affected
Electrical data
| pins | rated current | working voltage | Contact resistance | Insulation resistance | Withstand voltage |
| 2 ~7 | 8A | 260V | 3mΩ | 1500MΩ | 1500V |
