| Brand Name: | BEDE |
| Model Number: | GX-12-WP-2~7-E |
| MOQ: | 150 sets |
| Price: | negotiation |
| Packaging Details: | packing in PE bag each and 150sets per carton |
| Payment Terms: | T/T, Western Union, MoneyGram |

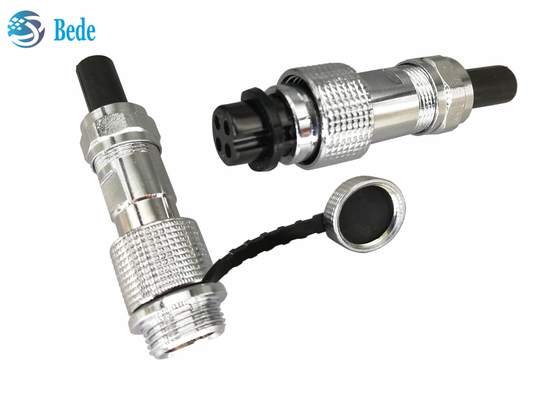

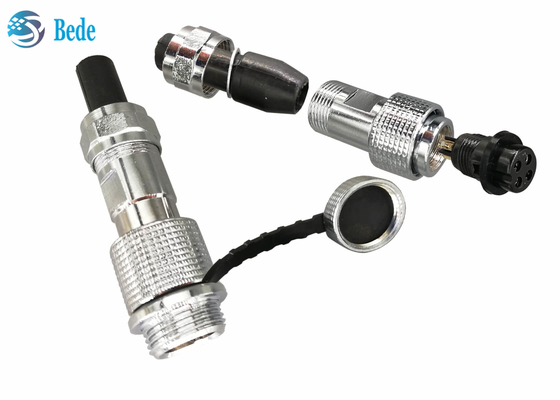

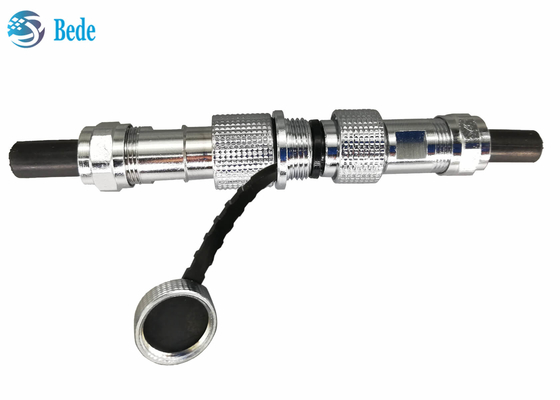

Copper Shell M12 Circular connector IP68 Cable To Cable Docking Connector 2~7 Pin
Structure
1.housing of male connector, shell material is copper with chrome plated,
2.Nut and washer, nut material is copper with chrome plated, washer material is stainless steel
3.O-rings for waterproofing
4.male connector, contact pins material is brass with gold plated,shell material is copper with chrome plated,
5,protactive cap
6.female connector, black color bakelite shell and gold plated contact pins
7.Housing of female connector, copper with chrome plated
8,Nut, copper with chrome plated, gripping the cable with 7&9 together for waterproofing,
9, Rubber sleeve
Notice: It is critical that all nuts are tightened after connection, otherwise the waterproofing effect may be adversely affected
Electrical data
| pins | rated current | working voltage | Contact resistance | Insulation resistance | Withstand voltage |
| 2 ~7 | 8A | 260V | 3mΩ | 1500MΩ | 1500V |
All familier
About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.
1.Panel mounting model-- front mounting
2.Cable docking model
3.Panel mounting model--Rear mounting
4.Panel mounting model with round flange
5.Panel mounting model with square flange
6.Panel mounting model with rhombus flange
7.PCB welding model with elbow pins
8.PCB welding model with straight pins
9.Panel mounting model with right angle--front mounting
10.Waterproof cable docking model
11.Waterproof panel mount model
12.Panel mounting model with right angle--rear mounting
|
|
