2 3 4 Pin Circular Connectors Plug And Socket Docking Connectors 25A 500V

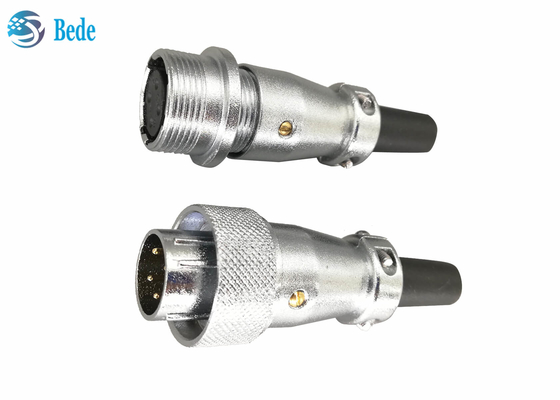

  • 2 3 4 Pin Circular Connectors Plug And Socket Docking Connectors 25A 500V

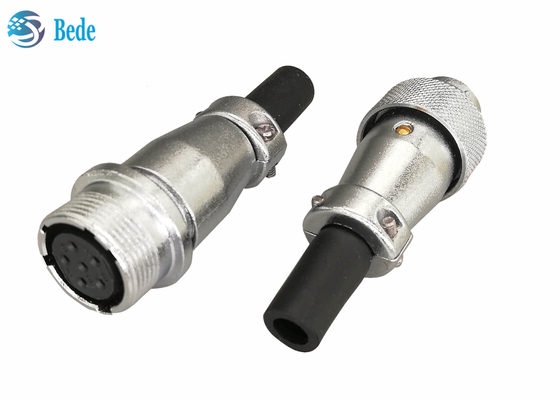

  • 2 3 4 Pin Circular Connectors Plug And Socket Docking Connectors 25A 500V
Place of Origin China
Brand Name BEDE
Certification CE RoHS
Model Number WS20-D-2 3 4
Minimum Order Quantity 80 sets
Price negotiation
Packaging Details 80set per carton,packing in PE bag each,
Delivery Time 4 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 4000sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Unit Weight 135g Pins 2 3 4
Rated Current 25A Rated Voltage 500V
Applicable Temperature -45~+90℃ Applicable Wire 11AWG
Contact Resistance 1mΩ Insulation Resistance 2000MΩ
High Light

4Pin Circular Connectors

,

4Pin circular connector plug

,

Docking Connectors 25A
Leave a Message
Product Description

WS20 Circular Connector 2 3 4 Pin Plug And Socket Docking Connectors 25A 500V



Description

  • Military grade male and female docking connectors, used for cable to cable connections for high voltage and high current
  • Housing material is chrome plated zinc alloy
  • Insulation material is PPS plastic,Insulation resistance more than 2000MΩ
  • Contact material is copper with gold plated, excellent electrical conductivity and very low contact resistance
  • Suitable for temperature range: -45~+95℃
  • Applicable cable: 11AWG, out diameter 6mm, wiring method is welding
  • Factory outlet, please pay attention to our MOQ 80 sets

2 3 4 Pin Circular Connectors Plug And Socket Docking Connectors 25A 500V 0

Product Size

  Female connector:   ΦD=M22   L=52mm   Φd max=11.6mm

  Male connector: ΦD=25.8mm    L=49.5mm  Φd max=11.6mm



2 3 4 Pin Circular Connectors Plug And Socket Docking Connectors 25A 500V 1



Electrical data



pins rated current rated voltage Withstand voltage contact resistance Insulation resistance
2 3 4 25A 500V AC1500V*1min 5mΩ 2000MΩ



Similar product

This page is about WS20, WS16, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested

2 3 4 Pin Circular Connectors Plug And Socket Docking Connectors 25A 500V 2
