500V Cable To Cable Docking Connector 5 7 8 9 10 12 14Pin 11AWG 14AWG WS20
  • name
  • name
  • name

500V Cable To Cable Docking Connector 5 7 8 9 10 12 14Pin 11AWG 14AWG WS20

Brand Name: BEDE
Model Number: WS20-D-5 7 8 9 10 12 14
MOQ: 80 sets
Price: negotiation
Packaging Details: 80set per carton,packing in PE bag each,
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE RoHS
Unit Weight:
135g
Pins:
5 7 8 9 10 12 14
Rated Current:
10A
Rated Voltage:
500V
Applicable Temperature:
-45~+90℃
Applicable Wire:
14AWG(5 7 8 Pin) / 11AWG(9 10 12 14 Pin)
Contact Resistance:
2.5mΩ(5 7 8 PIn) / 5mΩ( 9 10 12 14 Pin)
Insulation Resistance:
2000MΩ
Supply Ability:
4000sets per day
Highlight:

cable docking connector 12Pin

,

cable docking connector 14Pin

,

11AWG cable docking connector

Product Description

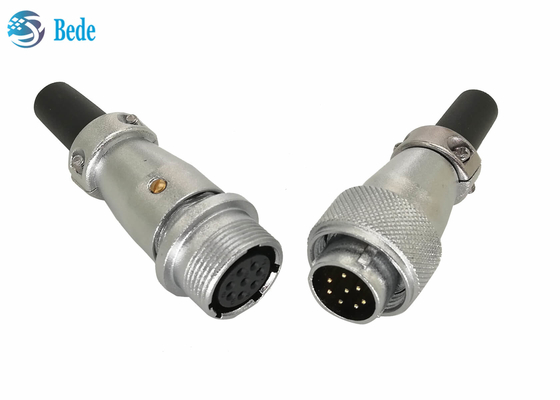

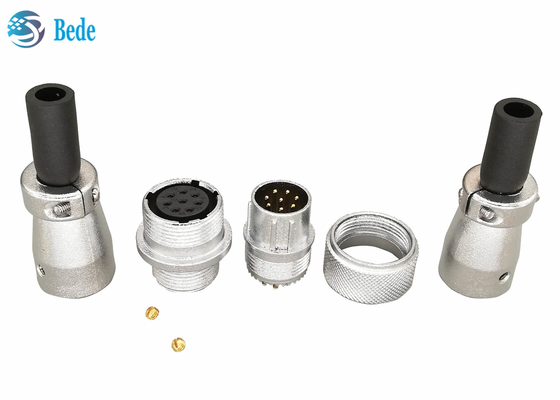

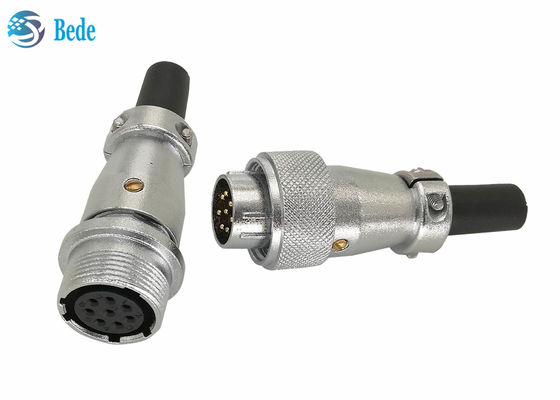

WS20 Circular Connector Cable To Cable Docking Connectors 5 7 8 9 10 12 14Pin



Description

  • Military grade male and female docking connectors, used for cable to cable connections for high voltage and high current
  • Housing material is chrome plated zinc alloy
  • Insulation material is PPS plastic,Insulation resistance more than 2000MΩ
  • Contact material is copper with gold plated, excellent electrical conductivity and very low contact resistance
  • Suitable for temperature range: -45~+95℃
  • cable out diameter 6mm,
  • wiring method is welding
  • buy male or female connector only is available

500V Cable To Cable Docking Connector 5 7 8 9 10 12 14Pin 11AWG 14AWG WS20 0



Product Size

  Female connector:   ΦD=M22   L=52mm   Φd max=11.6mm

  Male connector: ΦD=25.8mm    L=49.5mm  Φd max=11.6mm



500V Cable To Cable Docking Connector 5 7 8 9 10 12 14Pin 11AWG 14AWG WS20 1



Electrical data



pins 5 7 8 9 10 12 14
rated current 10A 10A 10A 5A 5A 5A 5A
working voltage 500V 500V 500V 400V 400V 400V 400V
Withstand voltage 1500V 1200V
contact resistance 2.5mΩ/pin 5mΩ/pin
Insulation resistance 2000MΩ
wire gauge 14AWG 14AWG 14AWG 11AWG 11AWG 11AWG 11AWG



Similar product

This page is about WS20, WS16, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested
