Rhombus Flange Gx12 5 Pin Connector 3A 200V Military Circular Connectors
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE RoHS |
| Model Number | gx12-RF-5 6 7 |
| Minimum Order Quantity | 100sets |
| Price | negotiation |
| Packaging Details | 100 sets per Carton |
| Delivery Time | 3 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 6500 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Silver | Pin | 5 / 6 / 7Pin |
|---|---|---|---|
| Mounting Hole | 12 Millimeter | Rated Current | 3 Ampere |
| Rated Voltage | 200V | Applicable Temperature | -50~+70℃ |
| High Light | Gx12 5 Pin Connector,5 Pin Gx12 Connector,Gx12 Military Circular Connectors |
||
Product Description

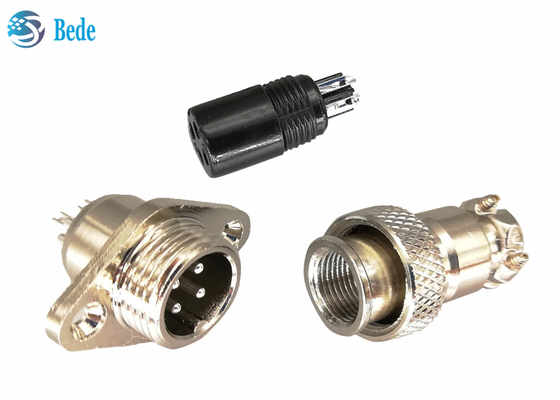

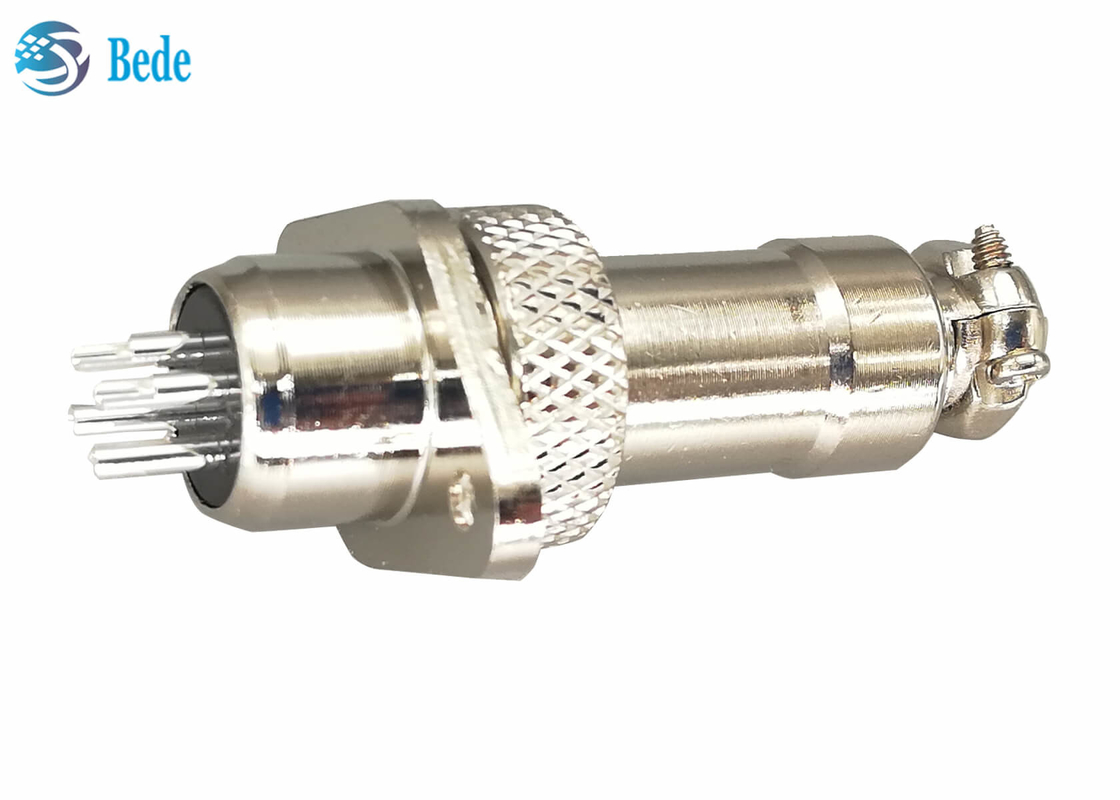

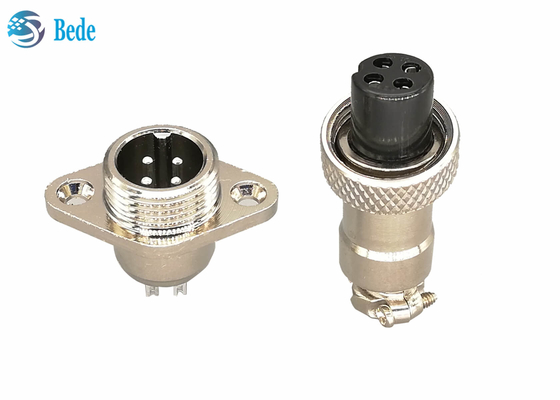

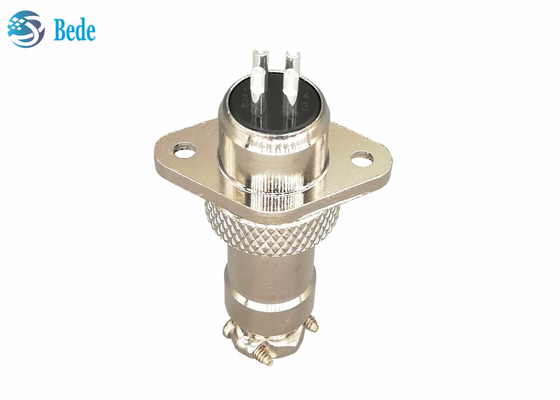

Military Circular Connectors With Rhombus Flange M12 3A 200V 5 6 7 Pins
Description
- A high-quality military connector, the body is zinc alloy, nickel-plated, the contact material is copper, with silver plating, good electrical conductivity, low contact resistance
- Male and female set with dust cover (optional)
- Complete accessories with screws and nuts for panel mounting
- The wiring method is welding, applicable wire diameter 6 mm
- Panel mounting type, 12mm mounting holes and flange screw holes need to be reserved on the panel
Technology date
- Pins: 5 6 7 pin
- Rated current: 3A
- Rated voltage: 200V
- Insulation resistance: 1500MΩ
- Contact resistance: 0.003Ω
- Applicable temperature: -50℃ ~ +70℃
Similar products
GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and elbow pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type, GX12 docking type waterproof
Our Advantages
- 100% high quality, all failed parts get free warranty within 30 days after received.
2. Accept 10 years warranty upon customer requirement.
3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time
4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.
5. Unique designed package for you can be provided upon customer requirement.
6. Special feature and service can be provided upon requirement.
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer, Our company's main product is Aviation Connector.
Q2: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q3: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q4: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q5: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
