Ip68 Waterproof Power Cable Connector , 2 Pin M13 Panel Mounting Connector
| Place of Origin | China |
|---|---|
| Brand Name | BEDE |
| Certification | CE RoHS |
| Model Number | 1322Q |
| Minimum Order Quantity | 200 sets |
| Price | negotiation |
| Packaging Details | packing in PE bag each and 200sets per carton |
| Delivery Time | within 3 days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 6000sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Ratet Current | 13A | Working Voltage | 250V |
|---|---|---|---|
| Insulator | PPS Plastic | Applicable Temperatrue | -25~+85℃ |
| Wiring Method | Soldering | Connection Method | Thread Locking |
| High Light | Ip68 Waterproof Power Cable Connector,M13 Power Cable Connector,PPS Plastic Panel Mounting Connector |
||
Product Description

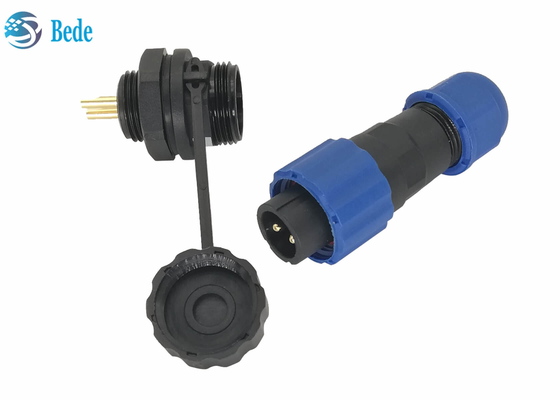

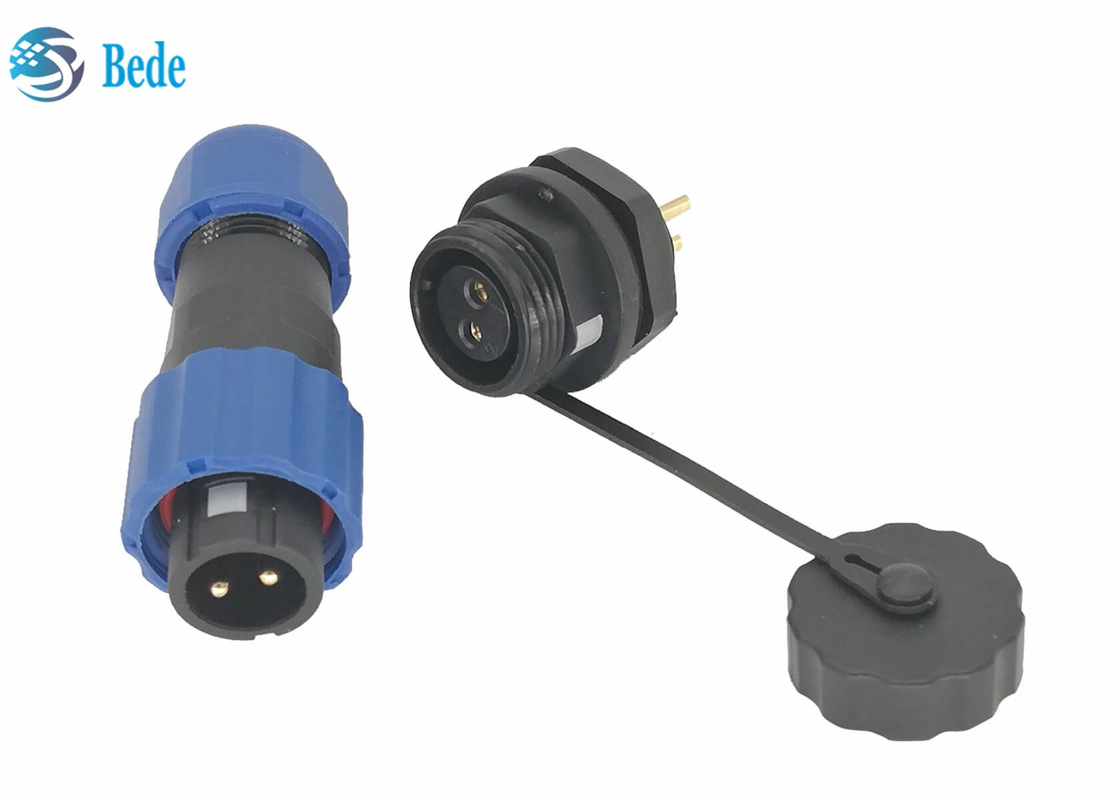

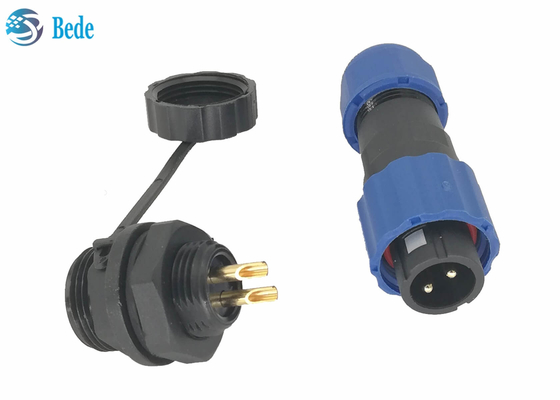

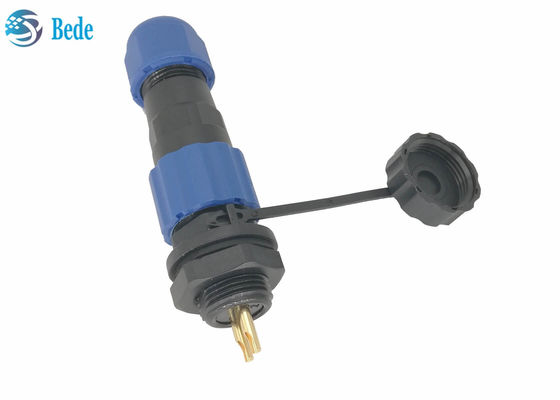

2 Pin M13 ip68 waterproof power cable connector panel Mounting Connector
Product Description
1. Components:Nuts&Sealed dust cover&Male ,Female&Seal Waterproof Ring&Anti-dislodging elastic mouth&Locking jaws&Flame retardant material body&Locking wire nut
2. Connection method: Thread locking
3. Female connector for panel mounting, housing merterial is PPS, pins merterial is brass with gold plated
4.【High Quality】Made of high quality material, it has a long service life.
5. lead angle:2pin
6.【Safe to Use】This aviation plug has excellent waterproof performance of IP68, more safety.
Appliance data
pins :2 4 5 6 7
Rated current :13A 5A 5A 5A 5A
contact hole size: Φ1.6x2 Φ1.0x4 Φ1.0x5 Φ1.0x6 Φ1.0x7
working voltage: 250V 200V 180V 125V 125V
Product Impact
1.Rainproof or can avoid damage to appliances caused by water spraying in directions where the vertical angle of intersection is less than 60 degrees
2.With protection class IP68, the connectors can be used in complex environments and can be immersed in water to cope with all kinds of outdoor complexities.
3.Electrical appliances sink indefinitely under the specified water pressure, ensuring no damage from submersion
Applications
1.Industrial environments such as in LED lighting, urban outdoor lighting projects, lighthouses, cruise ships, aviation, industrial equipment, cables, sprinklers
2.Military applications:Due to the strict application requirements, a large number of waterproof connectors are used, such as connectors for submarines and submarine-launched missiles
