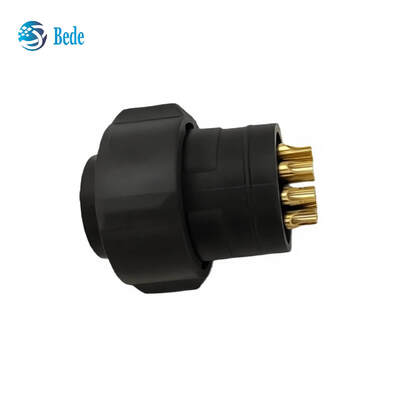

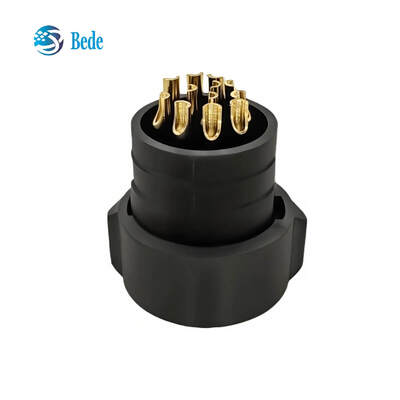

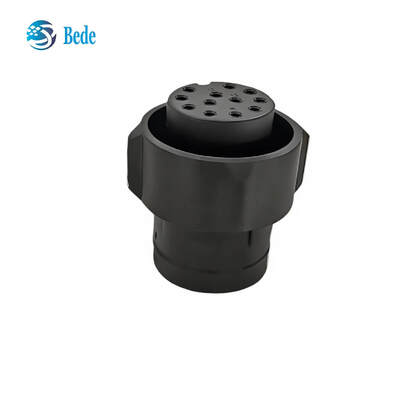

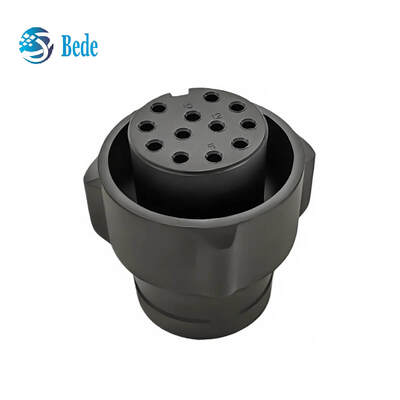

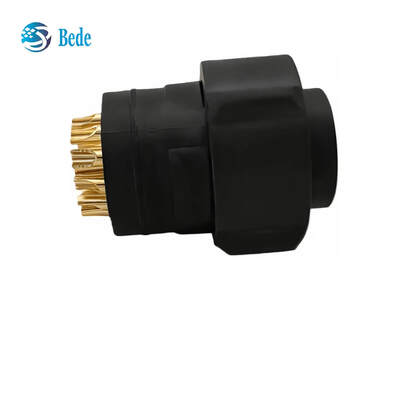

IMC26-2212X Circular Connector, 12-pin Circular Male Plug with Snap-on Design

Description:

The IMC26-2212X circular connector is suitable for various electrical equipment and cable connections.

It features a 12-pin circular male plug, a snap-fit ​​design for easy installation,

PA66 material with a V0 fire rating, and high safety performance.

IMC26-2212X Connector Core Functions

    The IMC26-2212X is a 12-pin circular industrial connector from DEUTSCH-TE Connectivity,

    Belonging to the IMC 200 series cable mounting plugs.

    Its core functions revolve around electrical connection and protection in industrial scenarios, specifically categorized as follows:

I.Core Electrical Connection Functions

1. Multi-channel Signal/Power Transmission: Equipped with 12 gold-plated contacts, it can simultaneously transmit multiple electrical signals or           low-power power, meeting the integrated connection needs of multi-circuit systems in industrial equipment

     and adapting to signal interaction in scenarios such as automation control and sensor networking.

2. Low-Loss Conductivity: The gold-plated contacts possess excellent conductivity and oxidation resistance, effectively reducing contact       resistance, minimizing signal loss and interference during transmission, and ensuring the stability of data and power transmission.

II. Physical Protection Functions

1. Environmental Sealing: With dedicated accessories, it can achieve an IP67 protection rating,

    Suitable for outdoor, humid, and dusty industrial environments.

2. Extreme Environment Resistance: The housing is made of PA66 material, withstanding a wide temperature range of -55℃ to +175℃.

3. Mechanical Protection: The bayonet-type coupling structure allows for quick insertion and removal while providing a secure mechanical     connection to prevent loosening.

III. Installation and Adaptation Functions

1. Cable Installation Adaptation: Adopts a cable installation design, allowing direct termination with industrial cables.

    Crimping terminal technology simplifies the assembly process.

2. Series Compatibility: Belongs to the IMC 200 series, enabling standardized matching with sockets and accessories in the same series,

    Meeting the modular design and replacement needs of industrial equipment.
