AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1

AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1
AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1 AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1 AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1 AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1 AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1

Large Image :  AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: RoHS
Model Number: 1-776231-1/1-776164-1
Document: 1-776231-1 (1).pdf
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiation
Delivery Time: base on quantities
Payment Terms: T/T,Western Union
Supply Ability: 3000Pcs per day
Contact Now
Detailed Product Description
Mounting Type: Board Mount Pin: 35 Pin
Female Part No.: 1-776164-1 Male Part No.: 1-776231-1
Material: Black PA66+GF (UL94 V-0),Copper Alloy (tin/gold-plated) Temperature Range: -40℃~+125℃
Waterproof Rating: IP67 Number Of Rows: 3
Highlight:

35-Pin Automotive ECU Connector

,

1-776164-1 Automotive ECU Connector

,

AMP Automotive ECU Connector

AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1
TE AMPSEAL 1-776231-1 is a 35-position vertical wire-to-board connector assembly. It features 1.3mm gold-plated 17A contacts, 4mm pitch, through-hole PCB termination, and IP ready sealing. Operating from -40°C to 125°C and UL 94V-0 rated, it provides reliable power and signal connections.
Product Specifications
Component Features TE Part Number Specification
Part Number 35POS, pin dia 1.3, HDR Assy, 180deg, COD 1 1-776231-1 Vertical through-hole PCB header
Rated Current Up to 17A per contact, gold-plated mating area - Power & signal circuit applications
Mounting Style Vertical, through-hole solder termination to PCB - Wire-to-board connection

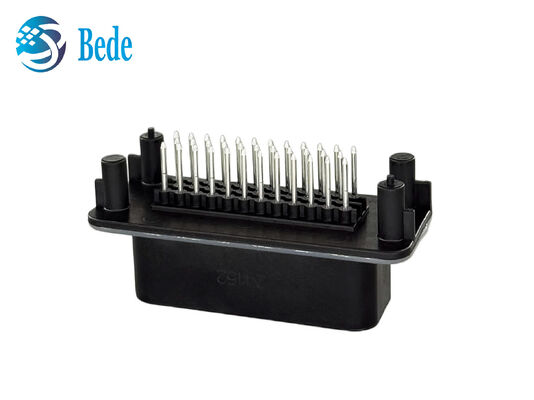

Header Type Fully shrouded, 35 vertical pins, 3 rows, 4mm pitch 1-776231-1 Vertical PCB male header

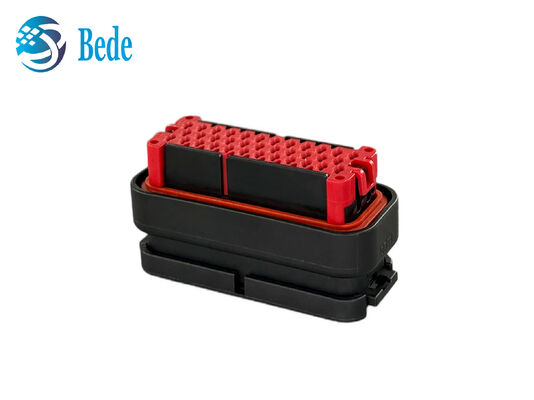

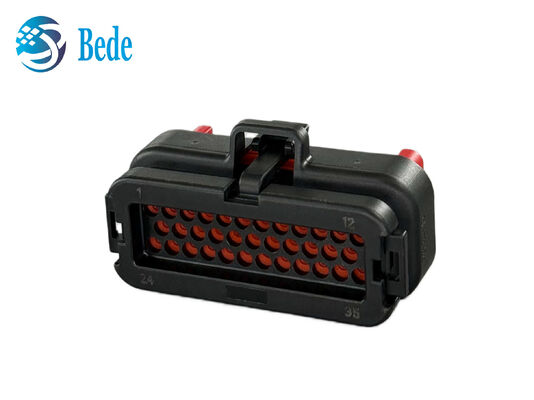

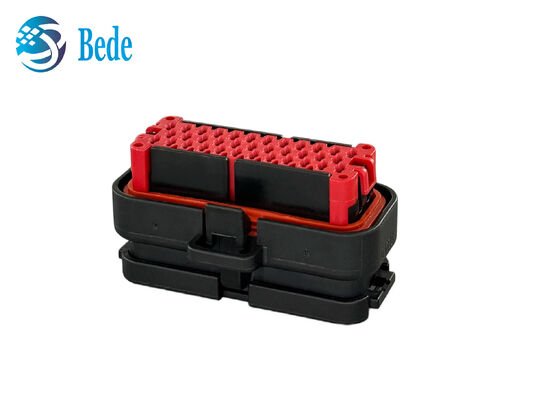

Female Housing (Wire Side) Integral silicone seal, red secondary lock, latch 776164-1 IP67 waterproof female connector
Sealability Sealable design - Suitable for sealed environments
Housing Features Black housing, keying code 1, UL 94V-0 flammability rating - Robust industrial construction
Operating Temperature -40°C to 125°C - Wide-range environmental compatibility
Product Features
  • Electrical Performance: Gold-plated 1.3mm pins rated up to 17A for reliable power and signal transmission
  • PCB Mounting: Vertical through-hole solder termination with 4mm pitch across 3 rows
  • Environmental Durability: Sealable design, operating temperature range of -40°C to 125°C
  • Safety Compliance: UL 94V-0 flammability rated black housing with keying code 1 for secure mating

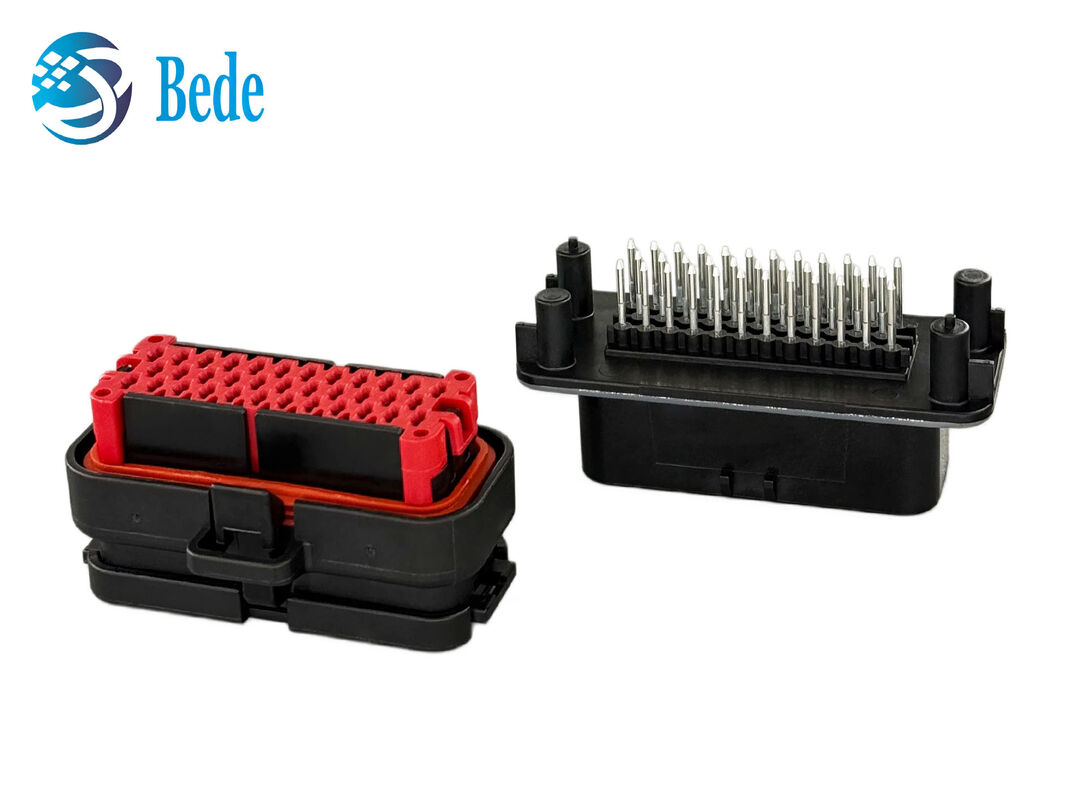

AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1 0
Applications
  • Automotive electrical systems requiring sealed power and signal connections
  • Industrial control equipment and harsh environment PCB wiring applications
  • Transportation and off road machinery with vibration resistant connection needs
  • Power and signal transmission modules in high temperature industrial environments
  • Electrical devices demanding UL 94V-0 flammability protection and stable wire to board connection
Installation & Notes
This sealed vertical wire-to-board connector features 35 gold-plated 17A contacts, through-hole soldering, precise alignment, UL 94V-0 rating, and wide temperature resistance, requiring careful soldering and correct keying during installation for reliable power and signal applications.

Tag:

2.54mm pitch IDC cable assembly,

PBT housing PCB connector,

ejector header automotive connector
