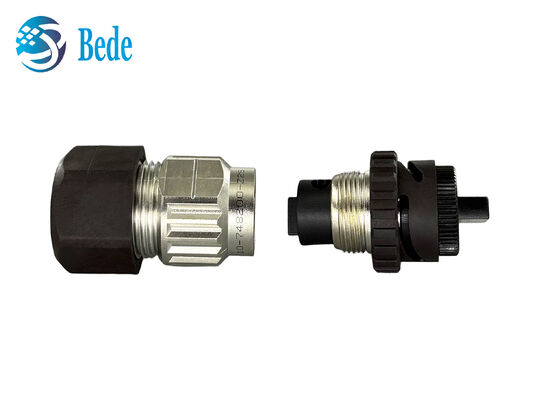

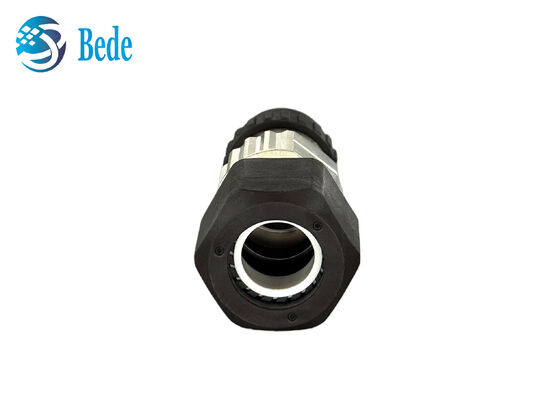

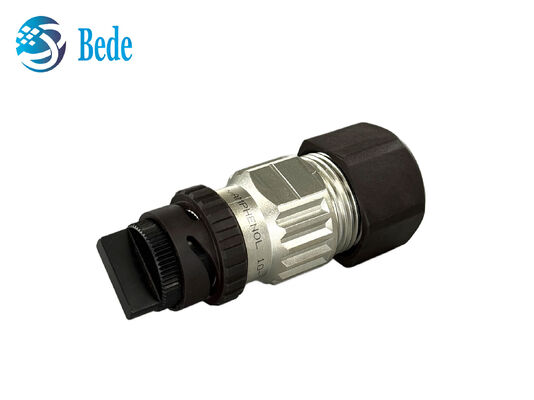

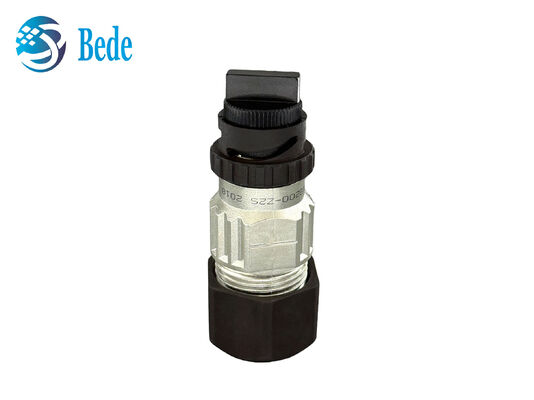

RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S

RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S
RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S

Large Image :  RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S

Product Details:
Place of Origin: China
Brand Name: BEDE
Certification: RoHS
Model Number: RNT 447 37/01
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: negotiation
Delivery Time: base on quantities
Payment Terms: T/T,Western Union
Supply Ability: 3000Pcs per day
Contact Now
Detailed Product Description
Pin: 2 Shell Material: Zinc Alloy
Temperature Range: -40°C ~ +105°C Waterproof Rating: IP67
Flame Retardancy: UL 94 V-0 Waterproof Rating : IP67
Contact Material: Copper Alloy

RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S
Product Overview
The RNT 447 37/01 (also listed by Amphenol as C10-748591-Z2S) is a specialized 2-pin circular DC power connector primarily used to power Ericsson Remote Radio Units (RRUs) in cellular base stations. It is designed for durability, harsh environment applications, field installation, and remote radio power delivery. It is highly regarded for its robust zinc construction, bayonet locking for secure connections, 55A current rating (test), and excellent EMI shielding.
Electrical Performance Specifications
Specification Details
Pin Configuration 2-Pin(2pole)
Rated Voltage 60V DC
Rated Current 26A per contact
Cable Outer Diameter (OD) Range 6.00 mm to 18.00 mm (0.236" to 0.709")
AWG Equivalence 14 AWG to 8 AWG
Temperature Range -55°C to +105°C
Waterproof Rating IP67
Flame Retardancy UL 94V-0
Product Features
  • Field-Installable Design: Features screw termination for quick, tool-less assembly and maintenance in the field.
  • High-Power Delivery: Rated for 26A per contact and 60V DC, optimized for telecommunications and remote radio equipment.
  • Signal Integrity: Equipped with 360° EMI shielding and a gold-plated copper alloy construction to ensure low contact resistance.
RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S 0
Applications
  • Telecommunications Infrastructure: Its most common use is providing DC power to Remote Radio Heads (RRH) and Base Transceiver Stations (BTS) on cell towers.
  • Wireless Networks: Frequently used for powering outdoor wireless radio equipment and networking hardware that requires a stable, high-current connection.
  • Industrial Machinery: Applied in sectors needing dependable electrical connections for control panels, motor connections, and automation systems.
Customization Services
  1. Custom connector plastic parts, such as insulator, nut, housing etc.
  2. Custom connector internal conductors, male and female pins, with silver or gold plating
  3. Custom connector accessories, such as silicone rings and dust covers
